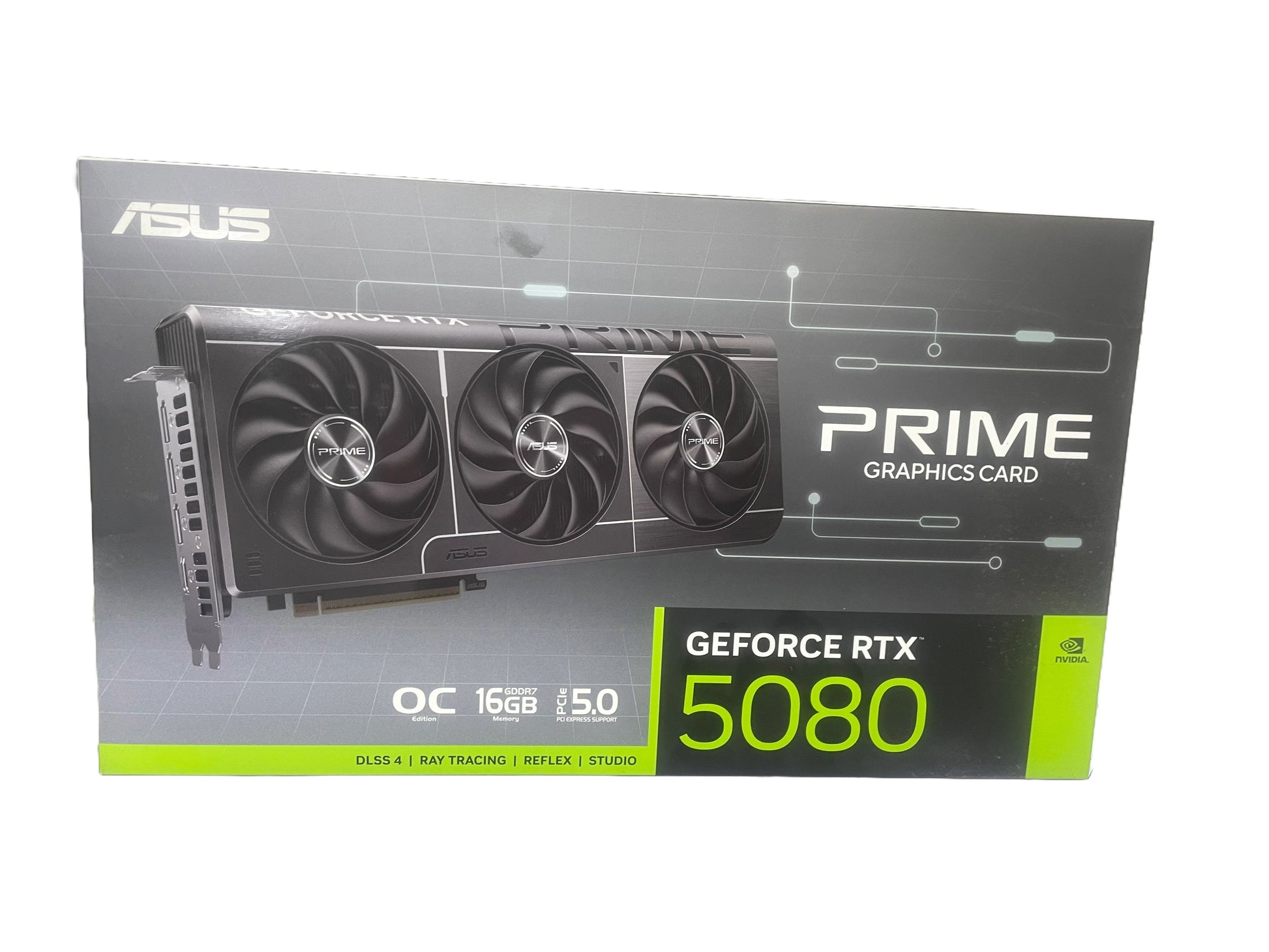

ASUS Prime GeForce RTX 5080 OC Edition 16GB,

Hardware & Performance Specs

• GPU architecture: NVIDIA Blackwell (GPU-chip “GB203”)
• CUDA cores: 10,752
• Memory: 16 GB GDDR7 on a 256-bit bus
• Memory speed: ~30 Gbps effective data rate
• Boost/OC clock: ~2,655-2,685 MHz in OC mode (default boost slightly lower)
• PCIe interface: PCIe 5.0 x16

Cooling & Build

• Triple Axial-Tech fans (longer blades + barrier rings) for improved airflow and down-pressure
• Dual‌-Ball fan bearings which are more durable compared to sleeve bearings
• Vapor chamber cooling + large heatsink array to absorb and dissipate heat
• “MaxContact” GPU cooling: enhanced heat-spreader surface area (≈5% more) to improve thermal transfer, lowering core temps by up to ~2 °C vs more basic designs
• Phase-change GPU thermal pad: fills microscopic gaps between GPU die and heatsink for better heat conduction

Acoustic & Usability Features

• 0dB Technology: fans stay off when GPU temp is under ~50 °C for quieter/light-use scenarios; they spin up after ~55 °C
• Dual-BIOS: user can switch between Performance mode vs Quiet mode

Physical & Compatibility

• Slot size: 2.5-slot design, which is relatively slim for a high-end card; helps with fitting in more compact PC cases (“SFF-Ready”)
• Dimensions: ≈ 304-306 mm length, ~126 mm width, ~50 mm height
• Power requirement: single 16-pin power connector; suggested PSU ~ 850 W to accommodate the card under full load

Display & Other Features

• Outputs: 1 × HDMI 2.1b, 3 × DisplayPort 2.1b
• Max digital resolution: up to 7680 × 4320 (8K)
• Supports up to 4 displays simultaneously
• Other GPU-feature support: DLSS, ray tracing (4th generation RT cores), Tensor cores (5th generation), NVIDIA Broadcast, NVIDIA Reflex etc.
