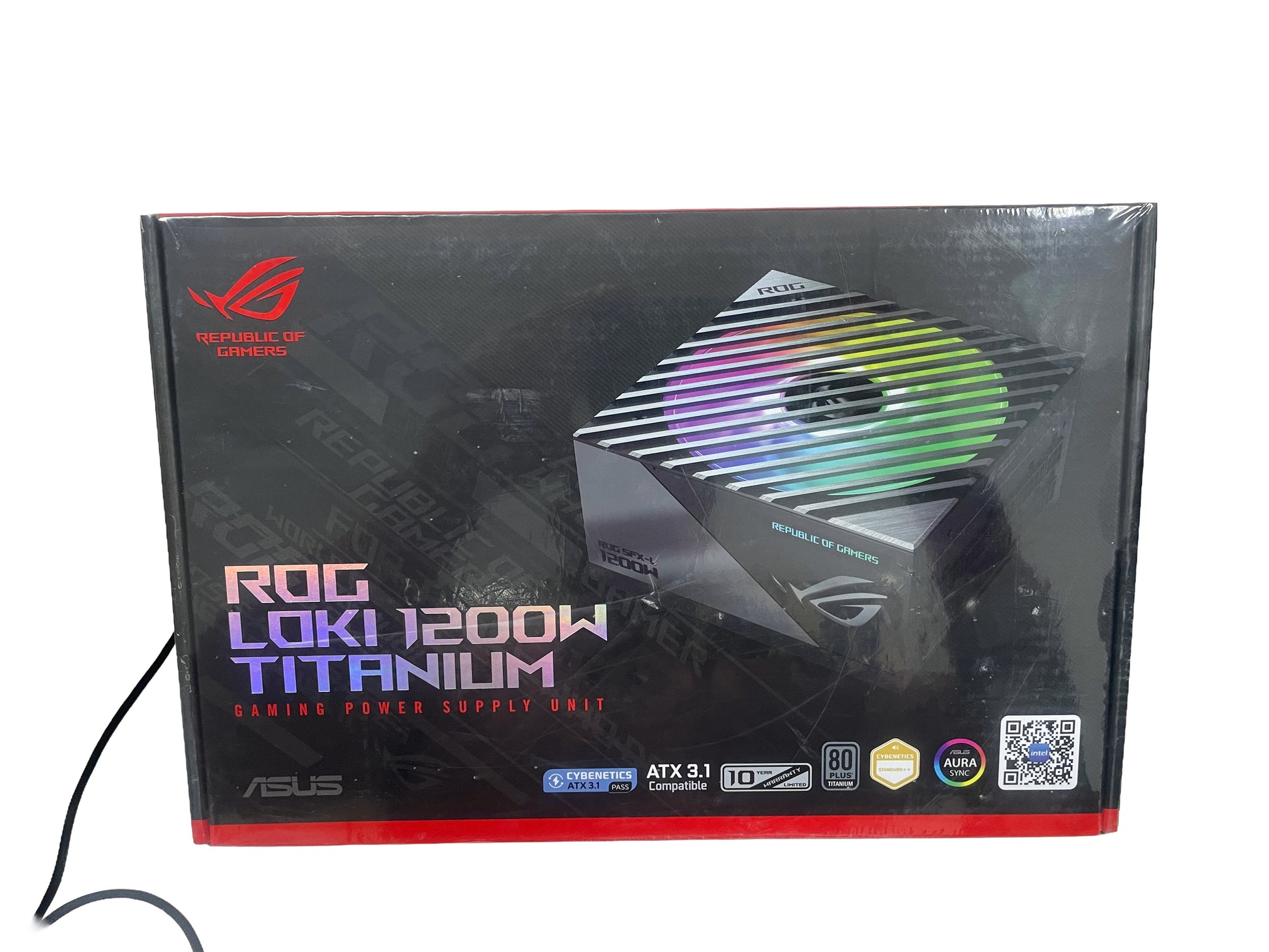

ASUS ROG-LOKI-1200T-SFX-L-GAMING/PSU, CE+UK, 90YE00N0-B0NA00

ASUS ROG-LOKI-1200T-SFX-L-GAMING/PSU, CE+UK, 90YE00N0-B0NA00

Dhs. 1,099.99 AED
Dhs. 1,120.00 AED Dhs. 1,099.99 AED
Sale Sold out



  • Form Factor / Compatibility
    SFX-L (small form factor) design — compact size (125 × 125 × 63.5 mm) suitable for compact / high-performance gaming builds
    Compliant with ATX 3.0 / ATX 3.1 power specifications
  • Power & Efficiency
    Total power output: 1200 W
    80 PLUS Titanium certification (very high efficiency, up to ~94%)
    Cybenetics / Lambda / noise certification (Standard++ / low noise)
  • Output & Voltage Rails
    | Rail / Line        | Max Current | Combined / Load Allocation |
    |———————|———––|—————————–|
    | +12V                | 100 A       | up to full 1200W load (dominant rail)  |
    | +3.3V                | 20 A        | shared with +5V – combined ~110 W  |
    | +5V                 | 20 A        | same as above  |
    | −12V                | 0.8 A       | modest as typical  |
    | +5Vsb (standby)     | 3 A         | for standby power  |
  • Protection & Safety
    Multiple protection features: OPP (over-power), OVP (over-voltage), UVP (under-voltage), SCP (short circuit), OCP (over current), OTP (over temperature)
    Complies with RoHS / hazardous materials standards
  • Cooling & Acoustics
    Single 120 mm fan with dual ball bearings for reliability
    “0dB” / fan stop mode under light load (semi-passive / zero RPM until load threshold)
    Heatsink & thermal design to aid low temperatures and allow quieter operation
  • Cabling & Connectors
    Fully modular cable design (you use only needed cables)
    Includes PCIe 16-pin (12VHPWR) connectors for modern / high-end graphics cards (capable of delivering up to 600 W via these cables)
    Other connectors:
    • 1 × 24(20+4)-pin motherboard cable
    • 2 × 4+4 CPU / EPS cables
    • 4 × 8-pin PCIe (6+2)
    • 6 × SATA power
    • 4 × 4-pin Molex / peripheral
      Also includes adapters (16-pin to dual 8-pin, etc.) in bundle
  • Physical / Mechanical
    Dimensions: 125 mm × 125 mm × 63.5 mm
    Weight: ~2.15 kg
  • Reliability & Warranty
    MTBF (mean time between failures): > 120,000 hours @ 25°C
    Warranty: 10 years (for core PSU)
  • Performance / Measured Results
    In independent Cybenetics testing:
    Efficiency up to ~91.76% under 115V condition, noise output ~34.14 dBA in typical loads
    Voltage ripple under full load:
     - 12V rail: ~35.05 mV
     - 5V rail: ~18.88 mV
     - 3.3V rail: ~22.11 mV
    Hold-up time: ~19.7 ms
    Load regulation: 12V ~0.28%, 5V ~0.38%, 3.3V ~0.64%
  • Aesthetics & Extras
    ARGB / Aura Sync lighting support for fan (addressable RGB)
    Includes etched (flat / soft) modular cables for better cable management and aesthetics
